Floorplan - 2016 Grand Design Reflection 367BHS

-
Sleeps 9
-
4 Slides
-
Rear Living AreaKitchen Island
-
41ft Long
-
12,474 lbs

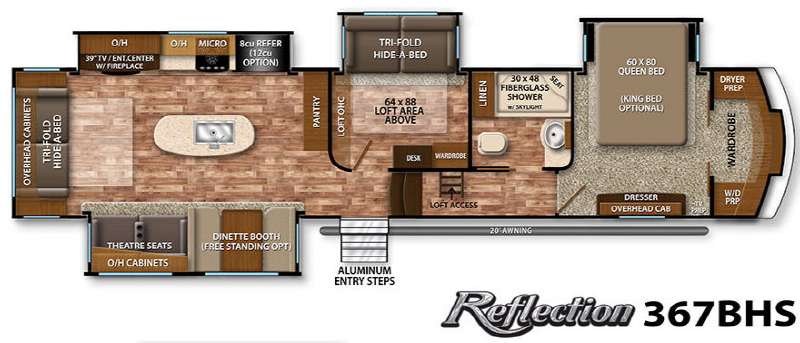

367BHS Floorplan
Specifications
Sleeps | 9 | Slides | 4 |
Length | 41 ft | Ext Height | 12 ft 6 in |
Hitch Weight | 2498 lbs | GVWR | 14995 lbs |
Dry Weight | 12474 lbs | Fresh Water Capacity | 60 gals |
Grey Water Capacity | 86 gals | Black Water Capacity | 43 gals |
Furnace BTU | 40000 btu | VIN | 573FR4228G3306659 |
Description
Step inside and notice the office/second bedroom area straight ahead. Inside you will find a tri-fold hide-a-bed sofa slide, a desk, and wardrobe. Directly above is a loft space with sleeping for two that is 64" x 88" including an access ladder in the hall at the top of the steps up to the right of the main entry door.
Beyond the access you will find a complete bath including a fiberglass shower with seat, a linen cabinet, overhead skylight, toilet, and vanity with sink plus medicine cabinet.
The front bedroom features a queen slide out bed with the option of choosing a king bed. There is a dresser opposite the bed, and a full front wardrobe with sliding doors. You will also find that each end of the wardrobe has been prepped for a washer and dryer if you choose to add the convenience of both.
Back down to the main level to the left of the entry door you will find a slide featuring a booth dinette and theater seating for two. You can choose a free standing dinette if you like. Plus there are overhead cabinets above the theater seating to help keep things neat and organized.
Along the rear wall enjoy more seating with a tri-fold hide-a-bed sofa including storage above. Adjacent in the road side slide you will find a 39" TV entertainment center with fireplace, plus the kitchen appliances.
Cooking will be easy with a three burner range, overhead microwave oven, and 8 cu. ft. refrigerator. A nice size pantry is located along the interior wall, and you will find more prep space with the kitchen island that includes a large single bowl sink. You can also choose to add a 12 cu. ft. refrigerator in place of the 8 cu. ft. one if you like, and so much more!
Features
Fifth Wheels
- Aerodynamic Front Cap with Max Turn Radius
- Marine Grade LED Hitch Light
- LED "Night Lights" Under Bedroom Slide
- One-Touch Automatic Leveling System
- Equa-Flex Rubberized Suspension System
- Correct Track Axle Alignment System
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- Extended Pin Box
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- "EZ" Winterize Water Heater Bypass Valve
- "EZ" Siphon Fresh Water Fill Feature
- Extra Large Fresh Water Drain Valve
Interior
- Hand Rubbed Maple Cabinet Doors
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Wall Hugger Theatre Seating
- Deep Overhead Cabinets in Slide Out
- Large Panoramic Slide Room Windows
- Premium Beauflor Flooring with 7-year Warranty
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
Construction
- Gel Coated Tan Fiberglass Exterior
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Thermofoil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 12 Year Warranty
- Easy Access Low Point Drain Valves
- Lamintated Aluminum Framed Rear Wall (R-9)
- Lamintated Aluminum Framed Side Walls (R-9)
- Lamintated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30)
- Residential Wood Framed Roof (R-40)
Kitchen
- Solid Surface LG Brand Countertops
- Gunstock Fixtures and Hardware
- Deep, Undermount Kitchen Sink
- Residential Style Microwave
- Hardwood Galley Slide Trim Moldings and End Caps
- MaxxAir 12v with Rain Sensor
Bathroom
- Neo-Radius Shower Doors (N/A on Bedslides)
- Wide View Skylight Over Shower
- Heat Duct and A/C Vents in Bathroom
- Custom Designed Shower Pan and Surround
- Power Vent Fan
- Extra Large Lav Top with Acrylic Sink
- Large Medicine Cabinet with Mirror
Bedroom
- King Size Wardrobe
- Black Label Pillowtop Mattress
- Oversized Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- TV and Cable Prep
Endless Summer Package (Mandatory)
- Residential Cabinetry
- Solid Surface Countertops
- Aluminum "Tread Lite" Entry Steps
- Metal Slam Latch Baggage Doors w/ Magna Latch
- 8cu Double Door Refrigerator
- 17.8 Gal/Hr. Quick Recovery Water Heater
- Porcelain Toilet w/Foot Pedal Flush
- Hi Rise Faucet w/Pullout Sprayer
- Universal All‐In‐One Docking Station
- Black Tank Flush
- Radius Fireplace
Power Package (Mandatory)
- One Touch Electric Awning w/LED Light
- One Touch Electric Front Stabilizer Jacks
- AM/FM/CD/DVD Bluetooth Stereo System
- Hi Definition LED Television (Living Area)
- 50 AMP Electrical Service
- Wired & Framed For 2nd A/C in Bedroom
- Detachable Power Cord w/LED Light
- Power Rear Stabilizer Jacks
Arctic Four Seasons Protection Package
- 35K BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Thermafoil Wrapped Frame and Subfloor (beneath main holding tanks)
- Heated and Enclosed Underbelly
- Ducted Heat to Pass Thru Storage Area
- Heated and Enclosed Dump Valves
- Zero Degree Extended Season Enjoyment
Options
- Free Standing Table and Chairs
- Dual Pane Windows
- 12 Cu.Ft. Refrigerator (318RST, 337RLS, 357BHS)
- Tri-Fold IPO Theatre Seating (Bunk models)
- 2nd A/C Low Profile 13.5k BTU Ducted
- King Bed (Bed Slide Models)
- Gel Coated Tan Fiberglass Exterior
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Thermofoil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 12 Year Warranty
- Easy Access Low Point Drain Valves
- Extra LargeFresh Water Drain Valves
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30)
- Residential Wood Framed Roof (R-40)
- Aerodynamic Front Cap with Max Turn Radius
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- "EZ" Winterize Water Heater Bypass Valve
- "EZ" Siphon Fresh Water Fill Feature
- Extra Large Fresh Water Drain Valve
- Hand Rubbed Maple Cabinet Doors
- Solid Hardwood Drawer Fronts
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (model specific)
- Wall Hugger Theatre Seating
- Deep Overhead Cabinets in Slide Out
- Large Panoramic Slide Room Windows
- Premium Beauflor Flooring with 7-Year Warranty
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
- Solid Surface LG Brand Countertops
- Gunstock Fixtures and Hardware
- Deep, Undermount Kitchen Sink
- Residential Style Microwave
- Hardwood Galley Slide Trim Moldings and End Caps
- MaxxAir 12v Fan with Rain Sensor
- Neo-Radius Shower Doors (N/A on Bedslides)
- Wide View Skylight Over Shower
- Heat Duct and A/C Vents in Bathroom
- Custom Designed Shower Pan and Surround
- Power Vent Fan
- Extra Large Lav Top with Acrylic Sink
- Large Medicine Cabinet with Mirror
- King Size Wardrobe
- Black Label Pillowtop Mattress
- Oversized Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- TV and Cable Prep
- One-Touch Electric Awning with LED Light
- One-Touch Electric Front Stabilizer Jacks
- AM/FM/CD/DVD Bluetooth Stereo System
- High Definition LED Television (Living Area)
- 50 AMP Electrical Service
- Wired and Framed For 2nd A/C in Bedroom
- Detachable Power Cord with LED Light
- Power Rear Stabilizer Jacks
- Residential Cabinetry
- Solid Surface Countertops
- Aluminum "Tread Lite" Entry Steps
- Metal Slam Baggage Doors with Magna Latch
- 8 Cu.Ft. Double Door Refrigerator
- 17.8 Gal./Hr. Quick Recovery Water Heater
- Porcelain Toilet with Foot Pedal Flush
- High-Rise Faucet with Pullout Sprayer
- Universal All-In-One Docking Station
- Black Tank Flush
- Radius Fireplace
- 35k BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
- Heated and Enclosed Underbelly
- Heated and Enclosed Dump Valves
- Zero Degree Extended Season Enjoyment
- Free Standing Table and Chairs
- Dual Pane Windows
- 60" Tri-Fold IPO Theatre Seating (Bunk Models)
- 2nd A/C 15k BTU Ducted
- King Bed (Bed Slide Models)
