Used 2016 DRV Luxury Suites Elite Suites 38 PS3

Fifth Wheel

Stock #934-24A

St. Cloud, MN

5500 ONAN

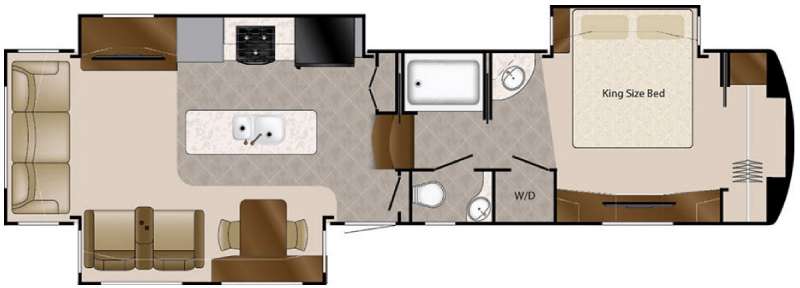

Floorplan - 2016 DRV Luxury Suites Elite Suites 38 PS3

1 of 6

Specifications

Sleeps	4	Slides	3
Length	39 ft	Ext Width	8 ft 5 in
GVWR	21000 lbs	Dry Weight	17100 lbs
Fresh Water Capacity	100 gals	Grey Water Capacity	75 gals
Black Water Capacity	50 gals	Tire Size	17.5"
Furnace BTU	40000 btu	VIN	5KEFA3823G1007898

Call Today 800-862-8603

Features

Standard Features (2016)

Frame / Running Gear

Goodyear® 17 1/2" H-Rated Re-Groovable Tires
Kodiak® Automotive Disc Brakes
MORryde® I.S. Suspension and Heavy Duty Pin Box
Heavy Duty 8,000 Lb. Rated Axles
Commercial Grade EZ Lube Hubs
15" Triple Stacked Box Tube Frame
101" Wide Body
Industrial Hydraulic System for Jacks and Lower Level Slides
Electric Bedroom Slide
Slide Outs with Select Push Button Controls
Pinless, Industrial Hydraulic Front Landing Jacks at 5 Degree Outboard Angle

Construction: Floor

3" Thick Floor
14" O.C. Floor Aluminum Floor Joists
Screwed and Glued Joist Construction
5/8" Tongue and Groove Plywood Flooring
Four Season Perimeter Heat Ducting in Floor
Residential Rated R29 Formaldehyde Free Wool Insulation

Construction: Walls / Slides

3 1/4" Thick Walls/Slides
16" O.C. Stud Spacing
Screwed and Glued Aluminum Stud Construction
1/4" Monsanto^® Fome-Cor Vapor Barrier (Eliminates Condensation)
1/4" Thick High Gloss Gelcoat Fiberglass with Wood Backer
Residential Rated R16 Formaldehyde Free Wool Insulation

Construction: Roof

16" O.C. Rafter Spacing
Residential Rated R25 Formaldehyde Free Wool Insulation
1/2" Plywood Roof Overlayment
Fully Molded 1-Piece Fiberglass Roof
Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings

Exterior

Straight Roof Line with 8' Tall Interior Slide Out Height
Subzero Thermo-Pack High Density Wool Insulation
High Gloss Oyster Colored Gelcoat Fiberglass
High Gloss Gelcoat Fiberglass Molded Caps
High Gloss Gelcoat Fiberglass Molded Fender Skirts
Full Body Painted Exterior with Custom Window Silks
Frameless Tinted Safety Glass Windows
Four Exterior Security Lights
Back-Up Lights with 50 Watt Halogen Lights
Commercial LED Exterior Clearance Lights
Red LED Turn Signal
Mid-Ship Turn Signal
LED Docking Lights
78" Entry Door
Removable Storm Door Panels
Keyless Entry Door
Metal Slam Door Compartment Latches
Extra Thick Compartment Doors with Gas Struts
Easy Access Light Switches for Basement
Washable Storage Compartment Liner
Custom Enlarged Control Center with LED Lighting
Lend-a-Hand Exterior Grab Handle
Power Awning with Aluminum Weather Shield
Water Pump Switch at Outside Hookup Center

Systems / Tanks

50 Amp Service with Detachable Cord
80 Amp 12 VDC Converter
100 Gal. Fresh Water Tank
75 Gal. Grey Water Tank with Power Flush
50 Gal. Black Water Tank with Power Flush
SeeLevel Tank Monitoring System on All Tanks
Residential Pex 1/2" Water Lines
Exclusive Copper Water Manifold with Individual Shut-Off Valves
Whole House Water Filtration System
Anderson Multi-Switch Water Bypass System
Slide Out Propane Tray with Dual 40 Lb. Tanks
12VDC Battery on Pull Out Tray
12 Gal. Gas/Electric DSI Water Heater
40,000 BTU Furnace with Custom Plenum
Residential 5 Duct Heating System with 6" Ducting
Forced Heat Ducting to Tanks/Water System
Fully Ducted A/C System with Cold Air Return
15,000 BTU Low-Profile Main A/C
Wired and Ducted Bedroom A/C with Cold Air Return
Triple 15,000 BTU Low-Profile A/Cs (All 43/44' Models)
Solar Prep
HD Roof Satellite Prep for Dual DVR Receivers
HD Ground Satellite and Cable Prep
Power TV Antenna

Interior: Luxury Living Room / Dinette

Hand Laid 12 x 24 Vinyl Floor Tile
Hand Laid Vinyl Wood Plank Flooring
Residential Rebond Carpet Pad
Plush Residential High Durability Nylon Carpet
Honey Cherry/Mocha Cherry Hardwood Solid Cherry Cabinetry
Hardwood Solid Cherry Fascia Trim Around Slide Outs with LED Lights
Hardwood Solid Cherry Cabinet Stiles (Pocket Drilled/Screwed)
Concealed Cabinet Door Hinges
Full Face Raised Panel Cabinetry
Soft-Close Full Extension Metal Drawer Guides
LED Interior Ceiling Lighting on Dimmer Switches
Personalized Hardwood Wall Clock
Utility Closet with Coat Storage and Centralized Control Station
Interior Ceiling Fan
Decorative 110V Light Sconces
Custom Hardwood Dinette Buffet with Quartz Top
Dinette Table with Hidden Leaf Extension
(2) Hardwood Dinette Chairs with Fabric Accent
Custom Hardwood Pull Out Desk (Most Models)
Crown Molding Throughout
HD Wiring Throughout
MCD Power Night Shades with Master Switch
Dyson® Hand Held Vacuum and Air Mover
Franklin Full Width Sofa with Hide-a-Bed
Franklin Theatre Seating with Center Console (Side Entertainment Models)
Franklin Recliners (Rear Entertainment Models)

Interior: Gourmet Kitchen

20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
Stainless Steel Convection/Microwave
Stainless Steel Residential Dishwasher
Pull-Out 13 Gal. Garbage Can
Double Deep Bowl Stainless Steel Sink with Sink Covers
Residential Kitchen Faucet with Separate Sprayer
Custom Hand Laid Tile and Porcelain Backsplash
Residential Quartz Countertops
Electric 2 Burner Induction Cooktop
Custom Appliance Garage with Pull-Out Tray (Most Models)
Custom Over the Island Wood/Glass Accent Light
Lighted Pantries and Kitchen/Bathroom Toe Kicks
Lighted Ceiling Soffit with Crown Molding and LED Accent Lighting

Interior: Master Bath / Hallway

Hardwood Steps
No Carpet in Hallway
Washer/Dryer Prep
Heat and A/C Ducting in Bathroom
Maxxair® Fan in Bathroom (Exhaust Only)
1-Piece Fiberglass Shower with Molded Seat
48" 1-Piece Fiberglass Shower with Molded Seat (Some Models)
Granite Colored Fiberglass Shower
Sky-Light Over Shower with LED Pot Light
Macerator Toilet

Interior: Master Bedroom

Custom Walk-in Front Closet with Built in Dresser (Most Models)
Real Cedar Lined Front Closet
Custom Hardwood Wardrobe Doors
Sleep Number® Bed by Select Comfort
Queen Bed Suite (Standard 32' Models)
Full Storage Under Bed Base
Separate Bedroom Ceiling Speakers
Over the Bed Reading Lights on Separate Switches
MCD Power Night Shades with Master Switch

Full Timer's Package (Forced Option)

55" Samsung® LED TV and Home Theatre Package
32" Samsung® LED Bedroom TV Package
15 BTU Ducted Lo/Pro Bedroom A/C
17.5" Goodyear® H-Rated Spare Tire and Carrier
2" Receiver Boat Hitch with 7-Way Plug
Manual 4-Step Entry
Detachable Ladder Only
Frameless Thermopane Windows

Traveler's Package (Forced Option)

Built-In Fireplace
Magnum 1000W Inverter with Dual 6V Batteries
Maxxair® Fan with Rain Sensor - Bathroom
Maxxair® Fan with Rain Sensor - Kitchen
Power Management System
Six Point Hydraulic Leveling System
One Touch Auto Leveling

Options

Cabinetry (Standards):

Honey Cherry
Mocha Cherry

Decor (Standards):
- Camden
- Kashmir
- Milan
Flooring (Standards):
- Hand Laid Vinyl Plank Flooring
- High Ounce Nylon Carpet
- Hand Laid Vinyl 12" x 24" Floor Tiles
Countertops (Standards):
- Intermezzo Quartz
- Kindred Quartz
- Symphony Quartz
Interior:
- Power Recliner Theater Seating/Recliners
Entertainment:
- 60" Samsung^® LED HDTV (N/A on 34 RESA) (Rear Entertainment Models Only)
- Winegard^® Trav’ler HD Auto Satellite
- WiFi Ranger Wireless Router
Bedroom:
- Queen Bed Suite (Standard on 32' Models)
- Honey Cherry Folding Chair
- Mocha Cherry Folding Chair
- Sleep Number^® Bed by Select Comfort (Standard ES)
- Vanity Slide in Front Bedroom (Standard on Some Models)
Systems / Vents / Fans:
- 15 BTU Ducted Lo/Pro AC - Bedroom
- Heat Pump
- Maxxair® with Switch Control – Bedroom
- Splendide^® Front Load 2 piece
- Splendide^® XC 2,100 Combo
- Generator Prep-Auto Change Over
- Onan^® 5500 Marquis Gold Generator with Prep
- Magnum 2,800 Watt Inverter with Four 6V Batteries
- Surge Protector with Voltage Protection and Remote Display
- Heat Pads on All Tanks with Elbow Heater on Drain Pipe
- Truma Continuous Hot Water Heater
Construction / Running Gear:
- Power 4-Step Entry (Exclusive)
- Power Cord Reel (N/A on 344 RESA)
- HBA Brake Cam (To be Ordered Special for Customers w/ GM Trucks)
Exterior / Awnings:
- Slide Toppers
- Power Dinette Patio Awning with Weathershield
- Slide Out Storage Tray (36" x 90")
- Audible Wireless Backup Camera System
- RVIA
- CSA
Full Body Paint (Standards):
- Cinder Ridge
- Desert Dream
- Superior Sunrise
- Western Gem
- Westport Harbor

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
