Floorplan - 2016 CrossRoads RV Cruiser CF368BH
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
39ft long
-
11,280 lbs
-
Sleeps 6
-
4 slides
-
BunkhouseOutdoor Kitchen

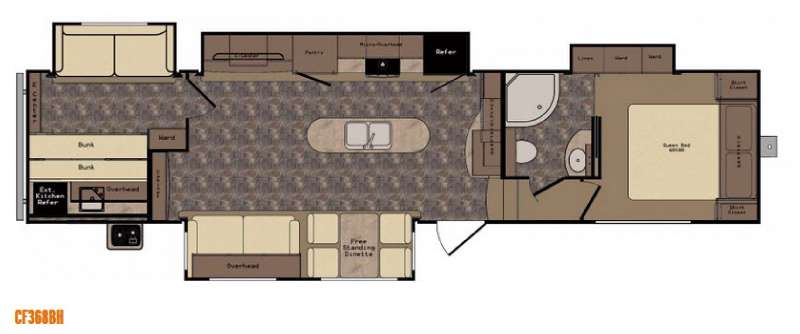

CF368BH Floorplan
Specifications
| Sleeps | 6 | Slides | 4 |
| Length | 39 ft 3 in | Ext Height | 12 ft 8 in |
| Hitch Weight | 2248 lbs | GVWR | 14248 lbs |
| Dry Weight | 11280 lbs | Cargo Capacity | 2968 lbs |
| Fresh Water Capacity | 56 gals | Grey Water Capacity | 80 gals |
| Black Water Capacity | 40 gals | Tire Size | 235/80R16E |
| Furnace BTU | 35000 btu |
Description
The CrossRoads Cruiser CF368BH quad slide features a rear bunk house, an outside kitchen, and a kitchen island.
As you enter the fifth wheel, to the left there is a slide with a free-standing dinette and chairs, and a sofa. Next to the slide you will find a large cabinet. One side of the kitchen has a large slide with an entertainment center, fireplace, pantry, three burner range, microwave, and refrigerator. In the middle of the kitchen you will notice the island with a double kitchen sink.
Stepping up the stairs, the bathroom is on the left. Inside the bathroom you will find a toilet, corner shower, sink, and medicine cabinet.
You can enter the front bedroom from either the hallway or from the bathroom. Inside the bedroom you will find a slide with a linen cabinet, and large wardrobe. Along the front of the bedroom there is a queen bed.
In the rear of the fifth wheel you will come to the bunk house. Your kids will enjoy all of the space that this room has to offer. Along one side there is a slide with a sofa on the bottom and a flip-up bunk above the sofa. Next to the sofa is an entertainment center. Across from the sofa there is a lower and upper bunk.
You can enjoy grabbing a quick snack or fixing a meal outside with the exterior kitchen. There is a refrigerator, sink, and two burner range, plus much more inside and out!
Features
- High gloss laminated sidewalls
- 5-Sided Aluma frame construction
- Aerodynamic front cap with LED accent lights
- One-piece seamless rubber roof covering
- Radius roof line
- Total Truss room system
- 30"x72" main entry door
- Lighted triple entry step
- Extendable grab handle at main entry
- EZ lube axles
- Trail air equa-flex suspension
- 16" "E" nitrogen filled radial tires
- Galvanized wheel well
- Outside kitchen (VBM)
- Super-Stor pass through basement storage
- Metal slam latch pass through baggage doors
- Cable prep and electric outlet in basement
- Manual slide override extends through frame for easy access
- Dura-Cam I beam frame
- Scare light
- Exterior marine grade speakers (2)
- Dual battery capacity
- Battery disconnect
- Heated and enclosed gate valves
- ABS Enclosed underbelly
- Forced heat to underbelly
- Black tank flush
- Quick recovery 10gal G/E DSI water heater (19.7 gal/hr)
- Outside shower
- Exterior utility center
- 50amp detachable power service
- 2nd AC prep
- Cable/SAT prep
- Digital TV antenna
- Electric rear jacks
- Outside grill prep
- Roof ladder
- Lumber core Screwed stile cabinetry construction
- Raised panel cabinetry throughout
- 70-lb steel ball bearing guides, full extension
- Solid wood drawer construction
- Hardwood mullion style fridge front
- Extendable free standing table and chairs
- Self igniting 22" oven with 3-burner cook top
- Range cover
- Knife rack
- Adjustable pantry shelving (VBM)
- High rise pull out kitchen faucet
- Under mount stainless steel kitchen sink with sink cover
- Maximum lino
- Tri-Fold hide a bed sofa
- Rocker recliner chairs (VBM)
- Deluxe theater seating (VBM)
- Ceiling fan
- Fireplace with remote
- Slideout sidewall light (VBM)
- OHC above sofa/chairs in slideout
- Decorative wood slide fascias
- Water heater by-pass kit
- EZ winterization kit
- Charging station
- Backlit command center for switches
- 65amp converter with distribution center
- Bath skylight
- Built medicine cabinet
- Glass tub/shower enclosure
- Deluxe bedding package
- Full trunk under bed storage
- Plywood bed base with strut assist
- Spacious bedroom closets
- Washer/dryer prep (VBM)
- Fire extinguisher
- LP/CO2 detector
- Smoke detector
Select Package: Mandatory
- 8cu ft refer
- 12v Multi-media sound system w/bluetooth
- Toy Lok
- Black Label furniture
- Deluxe soft pull roller shades
- Dark tinted safety glass windows
- Glazed maple cabinetry
- Interior safety step light
- Interior grab handle
- Dual 30# lp tanks w/auto changeover
- Porcelain toilet with foot flush
- 32" - 48" LED TV in living area (VBM)
- Microwave
- 35,000 btu furnace
- 10 gal quick recovery water heater
- 15,000 BTU ducted air system with quick cool
- Spare tire
- Solid surface kitchen countertops
- Polartec insulation package
- Aluminum rims
- High gloss sidewalls
- Electric awning with LED light
- Trail Air Roto-flex pin box
- Equa flex suspension
- Rear hitch receiver
- 2nd power awning with LED lights (VBM)
- Maxx Air fan w/rain sensor in kitchen
- Correct track alignment system
- i-Cool mattress (60"x80")
- LED lights throughout interior
- LED strip light behind main TV and in outside kitchen
- 8 Function remote control
- 7" Deep sink with high rise pull out faucet
- Luxury backsplash
Options
- Bumper mount grill
- Insulated windows
- Painted rear fiberglass cap
- Painted exterior (requires rear cap and includes Vetro high gloss)
- 2nd AC (lo-profile 13.5)
- Maxx Air Fan w/rain sensor in bathroom
- Maxx Air Fan w/rain sensor in living room (362FL only)
- King bed IPO Queen (322RL & 303SE)
- Free standing table and chairs with recliner (345BH)
- Theater seats ipo Recliners (VBM)
- Carpet in living area
- 32" TV with bracket in bedroom
- Ground control 3.0 electric auto leveling system
- 18 cubic ft French door Residential refer (VBM)
- 12 cubic ft side by side refer (362FL only)
Polartec Components:
- Sidewall - Block foam insulation + double layer lauan
- Roof - Wood rafters + R-14 spun insulation + R-15 radiant foil
- Floor system - R-14 spun insulation + R-15 radiant foil + ABS enclosure
- Front wall - R-7 spun insulation + R-15 radiant foil
- Rear wall - R-7 spun insulation + R-15 radiant foil
- Slide floor - R-15 radiant foil insulation
- Slide end walls - R-7 spun insulation + R-15 radiant foil
- Bedroom deck - R-7 spun insulation + R-15 radiant foil
- Above open pin box - R-15 radiant foil
- Gate valves - Enclosed and heated
- Underbelly - Forced heat to tanks
- 35,000 BTU Furnace - Largest in its class
Total Truss Roof System:
- 50% stronger than competitive roof designs
- 4 1/2" crowned wood truss 16" On Center
- 2"x2" vertical wood stud supports to maximize load capacity
- Oversized nail plates for greater stability
- 3/8" roof decking (secured in place with screws)
- Radius roof edge
- Fully walkable
See us for complete list of features and available options!
All features and specifications are subject to change.Save your favorite RVs as you browse. Begin with this one!
