Used 2016 Adventurer LP (ALP) Eagle Cap Truck Camper 1165

Truck Camper

Stock #2706-21B

St. Cloud, MN

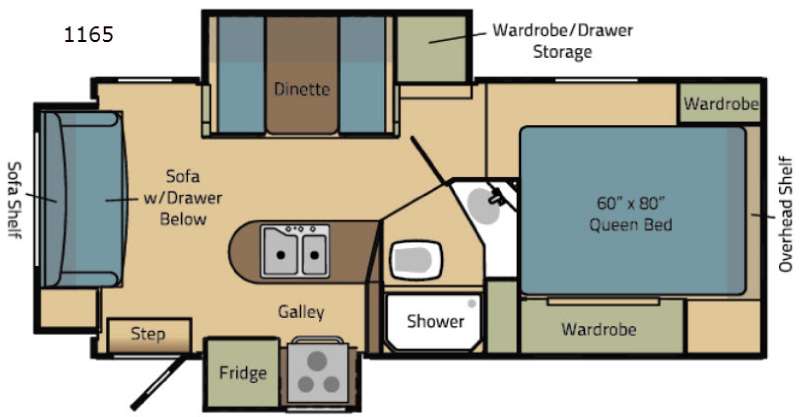

Floorplan - 2016 Adventurer LP (ALP) Eagle Cap Truck Camper 1165

1 of 6

Specifications

Sleeps	4	Slides	3
Length	20 ft 10 in	Ext Width	8 ft 6 in
Ext Height	9 ft 4 in	Int Height	6 ft 4 in
Dry Weight	4751 lbs	Fresh Water Capacity	66 gals
Grey Water Capacity	41 gals	Black Water Capacity	41 gals
Furnace BTU	30000 btu	Generator	Onan RV QG 2500 LP
Available Beds	Queen	Truck Bed Size	Long
Body Style	Hard-Side

Call Today 800-862-8603

Features

Standard Features (2016)

Exterior

Eagle Cap Exclusive – “Aerodynamic Two-Tone One-Piece Fiberglass Front Cap” – EC Max Pkg
Eagle Cap Exclusive “All Season triple exterior sealing process”
Eagle Cap Exclusive Frameless Windows providing you that high end luxury motor coach look – EC Max Pkg
Eagle Cap Exclusive Super Step® Aluminum step bumper with single 36” folding step
ALP Exclusive – TCC® Construction – 3 Year Structural Warranty
ALP Exclusive – Front Camper Guides
ALP Exclusive – Twenty-Six inch “Friction Hinge” entry door with HD screen door
HD (High Definition) exterior graphics
New Generation Happi-Jac Wireless remote electric Jacks
High gloss gel-coat fiberglass automotive finish sidewalls
LED exterior lighting
Slam Latch Exterior Compartment Doors – Common keyed
4-Season insulated storage compartment doors w/Slam Latches – EC MAX PKG
Sliding pass through window – Thermalpane – EC MAX PKG
Centrally located plumbing valve access
Frameless 4-Season gas-filled thermal pane tinted windows – EC MAX PKG
Diamond Plate Risers
Phat® Ladder
Awning Slide-Topper

Construction and Insulation

Eagle Cap Exclusive “Aerodynamic Two-Tone One-Piece Fiberglass Front Cap” – EC Max Pkg
ALP Exclusive TCC® Construction – superior strength, construction and a 3 yr structural warranty
Welded aircraft quality 2×2 and 2×4 aluminum frame superstructure
Schwintek slide-out mechanisms
Laminated closed-cell block foam insulation – superior insulation, strength and sealing values – EC Max Pkg
TCC® 3″ crowned roof structure with R-19 insulation – EC Max Pkg
One-piece seamless Thermo Polyolefin (TPO) insulated roof with 12-year manufacturer warranty– EC Max Pkg
2″ TCC® laminated walls with R-13 insulation factor – EC Max Pkg
2” TCC® laminated floors with R-22 insulation factor – EC Max Pkg
Corrosion resistant LPG compartment
LPG manifold system
Jack brackets bolted through TCC® laminated aluminum super structure
45⁰ Stainless steel tie-down brackets – bolted through TCC® laminated aluminum super structure

Interior and Decor

Interior Décor Choices: Infinity, Pewter, Stone
Schwintek Electric Full Wall Slide-out
Hardwood cabinet doors and face frames
Residential-style cabinet hardware
All wood full extension drawers with ball-bearing metal guides
Hand upholstered valances and lambrequins
NEW – Simulated Padded Ceiling
Night shades for all windows (mini blind in kitchen to meet code)
Residential Designer No-wax industrial grade vinyl floor covering
Flame-treated fabric upholstery
LED interior lighting
NEW – Interior “Mood” Lighting

Galley, Appliances and Equipment

AM/FM/CD/DVD/MP3/Blue tooth w/two exterior speakers
Fantastic Fan – 3 Speed
Microwave
Eagle Cap Exclusive - 30" Residential Microwave/Convection Oven w/vent (1200)
Dometic seven-cubic foot double door refrigerator
Sealed three-burner cooktop and oven with auto igniter and bi-fold top cover
Range hood with light, fan
LED interior lighting
Systems Control Center
Easy access Shurflo Quiet Revolution water pump with electric on/off switch
Solid granite coat counter tops with large molded double bowl sink
NEW – Pull-out galley sink faucet w/spray
Sink cover cutting board
Pantry with adjustable shelves
Large dual vertical 20lb LPG tanks
Automatic changeover LPG regulator
LPG manifold system
30,000 BTU Thermostatically controlled forced air furnace with auto-ignition – EC MAX PKG

Fresh and Waste Water Systems

49-gallon fresh water tank capacity with lockable freshwater fill and city water hookups (850)
44 -gallon fresh water tank capacity with lockable freshwater fill and city water hookups (960)
47 -gallon fresh water tank capacity with lockable freshwater fill and city water hookups (995)
60 -gallon fresh water tank capacity with lockable freshwater fill and city water hookups (1160, 1165, 1200)
4-Season insulated and heated holding tanks – EC MAX PKG
Shurflo Quiet Revolution water pump with inline filter -4-Season insulated and heated – EC MAX PKG
6-gallon DSI gas water heater w/ insulated tank -4-Season insulated and heated – EC MAX PKG
Low point fresh water drains with valves -4-Season insulated and heated – EC MAX PKG
Water heater bi-pass with easy access winterizing valve – 4-Season insulated and heated – EC MAX PKG
Single termination point for waste tanks
Exterior sewer hose carrier
Enclosed, insulated and heated tanks – engineered for improved weight distribution and COG – EC MAX PKG
Black Holding Tank Flushing System

Bathroom

Large Wet Bath – One Piece fiberglass (850)
Large Wet Bath with a one-piece fiberglass shower (960)
Spacious Dry Bath - One Piece fiberglass shower (995)
Large Dry Bath with one piece fiberglass shower/tub combination (1160, 1165)
Center Dry Bath with pocket door and large private enclosed dressing room with wardrobe, 4-drawer dresser and large adjustable shelf pantry. (1200)
New - Expandable shower curtain rod (995, 1160, 1165, 1200)
Raised fresh water foot flush toilet
One piece fiberglass corner shower stall with built-in lavatory sink and faucet
Built-in lavatory sink w/faucet
Exhaust vent with fan
Large medicine cabinet with mirrored door
Shower Curtain
Sliding easy access bath door
Hidden pocket sliding bath/dressing door (1200)
Ducted heat – EC MAX PKG
LED interior lighting

Dinette and Sleeping Accommodations

Dream Dinette – no annoying table leg in the way – easily converts into a bed with the flip of a lever
EC Exclusive Modular Dinette furniture – Easily convert to u-shape dinette, sofa, recliners or free standing table and chairs to any EC dinette area
Cabover master bedroom with 60″ x 80″ queen-sized Inner Coil Spring pillow top mattress
Eagle Cap Exclusive - Free standing table and chairs (2) with pull out extention (two additional folding chairs optional) (1200)
Eagle Cap Exclusive - California King Bed master suite with dual side access w/ 72"X84" Inner Coil Spring pillow top mattress (1200)
Eagle Cap Exclusive - King size under bed storage (1200)
Décor matching comforter
Ducted heat – EC MAX PKG
LED bedroom reading lights
Bedroom privacy curtain
Dual Bedroom privacy bi-fold doors (1200)
LED interior lighting

Electrical

45-amp electronic power converter with “Smart” battery charger
Corrosion proof dual battery compartment
LED interior and exterior lighting for minimal battery draw
New Generation Happi-Jac wireless remote electric Jacks
12V battery disconnect switch
Pre-wired for air conditioner, solar panel and cable
Interior wall switched interior LED entry and exterior passenger security lights
Easy access distribution center
Detachable 30-amp 110V power cord, no stuffing power cord into small compartment
12v/USB Charging Port – charge all of your popular electronics
Digital HD “Concealed” interior mount TV antenna – no TV antenna on the roof, better reception
110V convenience outlets
110V GFI-protected outlets
Cable TV ready

Safety

EC Exclusive – Super Step® 11″ Aluminum bumper with 36” folding step
LPG gas detector
Carbon monoxide / smoke detector
Fire extinguisher
Emergency cabover egress through cabover window and/or optional overhead skylight / escape hatch
Custom keyed deadbolt entry lock unique to your unit
Brighter and safer LED Porch, tail, clearance and back-up lights
110V GFI protected outlets
Large folding entry assist handle

Options

EC Exclusive – EC MAX Insulation Package – Mandatory
19″ LCD 12V TV (850, 995)
19" LCD 12V TV Bedroom (960, 1160, 1165)
24" LCD 12V TV Bedroom (1200)
32" LCD 12V TV Living Room (1160, 1165, 1200)
Low Profile Air Conditioner w/Digital Wall T-Stat
Short Box Storage kit / Reg w/Gen Opt (makes camper only fit SB trucks)
Generator Ready / Req w/Gen Opt (makes camper only fit SB trucks)
Generator-2500W Cummins/Onan LPG (makes camper only fit SB trucks)
Jack Brackets-Swing Out Dually – Req w/Dually Trucks
New – Rear 12v Electric Awning w/LED
Patio Awning Box Carefree 8′
New - Patio Awning 12v Power Travel'r Carefree 11'4" w/LED (1200)
Roof Rack System – (Maggie w/Cross Bars)
Solar Panel – 100 Watt w/Regulator
U Shaped Dinette - Modular
ALP Exclusive - Theater seating Recliners (Replaces sofa) (1165, 1200)
Water Filter w/Faucet
Wireless HD Color Backup Monitor/Camera

See us for a complete list of features and available options PER MODEL!

All features and specifications are subject to change.
