Floorplan - 2009 Heartland Big Country 3355 RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $9,950
- Market Price: $11,950
- Available Discount: $2,000
-
Sleeps 4
-
3 Slides
-
Rear Living AreaFront Bedroom
-
37ft Long
-
11,150 lbs

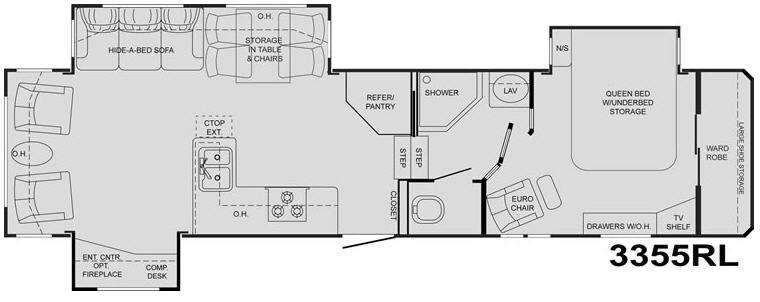

3355 RL Floorplan


Specifications
Sleeps | 4 | Slides | 3 |
Length | 36 ft 8 in | Ext Width | 8 ft |
Ext Height | 12 ft 11 in | Int Height | 6 ft 4 in |
Exterior Color | WHITE | Hitch Weight | 2100 lbs |
GVWR | 14000 lbs | Dry Weight | 11150 lbs |
Fresh Water Capacity | 75 gals | Grey Water Capacity | 90 gals |
Black Water Capacity | 45 gals | Tire Size | ST235/80R16E |
Furnace BTU | 35000 btu | VIN | 5SFBG33299E201783 |
Description
Triple Slide Big Country Fifth Wheel w/Rear Living Area, 2 Chairs, End Table & Overhead Cabinets, Hide-A-Bed Sofa & Dining Table & Chairs Slide, Ent. Center w/Opt. Fireplace & Comp. Desk Slide, L-Shaped Counter w/Extension, Double Kitchen Sink, 3 Burner Range, Corner Refrig./Pantry, Closet, Step Up To Angle Shower, Private Toilet Area, Sink, Master Suite w/Euro Chair & Ottoman, Queen Bed & Nightstand Slide, Walk-In Wardrobe, Drawers w/Overhead, TV Shelf & More!
Features
Standard Features (2009)
- All Cabinet Frames are Pre-Drilled, and Screwed Together - not stapled
- Baltic Birch Drawer Construction (Real Wood)
- Deluxe Ball-Bearing Drawer Guides
- Beautifully Crafted Crown Moulding
- Allows for 88% Turning Radius on Short Bed, Extended Cab Trucks
- Truly Unique Aerodynamic Profile
- 12 Volt Light
- All Tanks Pull Handles
- Hot & Cold Shower with Sprayer
- Black Tank Flush System Hook Up
- City Water Hook Up
- Shielded RG-6 Coaxial Cable Hook Up
- Satellite Hook Up (Roof OR Tri-Pod)
- Telephone Hook Ups
- Winterization Valves
- Over 145 Cubic Feet of Storage!
- Large Insulated Access Doors
- Unobstructed Pass-Through Design
- Aluminum Framed Storage
- 110V Outlet & Cable TV Plug
- 12V Trunk Lights
- Unobstructed, Clean Front Storage Area
- Large Walk-In Front Wardrobe
- Bedroom Slideout w/Underbed Storage
- Two Windows in Slide for Better Air Flow
- Large Dresser w/Large Drawers
- 6’-4" Bedroom Ceiling Height Throughout
- Reading Lights Over Bed
- Nightstand
- Speakers in Bedroom w/ A-B Switch
- Fiberglass Sidewalls
- Double-Welded Aircraft Quality Aluminum
- Dark Tinted Safety Glass Windows with UV Inhibitor
- Panoramic Rear Bay Window Setup
- Panoramic Windows in Dinette Area
- Ventilation Slider Side Windows
- Exterior Speakers
- Jenson&trade 12V Surround Sound System
- 2 Molded Security Lights
- Light at Entry Step
- 5" Attic Trusses for Extra Strength
- Walkable Roof Decking (3/8"), Glued and Screwed in Place
- One-Piece Seamless EPDM Rubber Roof
- R-14 Formaldehyde Free Insulation
- Moisture Ventilation Caps
- Strong 3" Aluminum Framing
- Block Foam Insulation
- 3/8" Seamless Decking (No Seams)
- Thermo-Board Luan on the Bottom
- Strong 10" I-Beam Frame w/Drop Frame (12" I-Beam on 3500RL)
- Front Electric Landing Jacks (Opt.)
- Spring Loaded Snap Pins
- Heavy Duty Rear Stabilizer Jacks (Opt.)
- Heavy-Duty E-Rated 16" Tires
(G-Rated on 3500RL) - Trail-Air & Trade Equa-Flex Suspension
- White Steel Rims
- 6,000 lb. Axles (7000 lb. Axles on 3500RL)
- 2 x 12" Brakes
- ABS Fender Skirts
- Seamless Corrugated Underbelly Material
- Heated and Enclosed Underbelly
- Heated and Insulated Holding Tanks & Gate Valves
- Flexfoil Insulation (R-14)
- Color-Coded Plumb-PLEX&trade Water Lines
w/10/25 Year Warranty - Low Point Drains
- 75 Gallons - Fresh Water
- 90 Gallons - Grey/45 Gallons - Black
- (2) 30# LP bottles w/Auto Change Over
- 60 AMP/12V DC Power Converter
- 55 Amp Detachable Marine Cord
- Battery Box
- 110V Exterior Electrical Receptacles
- Seamless One Piece In-Floor Heat Duct
- 35,000 BTU Furnace (40,000 on 3500RL)
- Heated Stool Room
- 15,000 BTU Air Conditioner
- Air Conditioned Stool Room
- Walls - R8 Insulation
- Roof - R23 Insulation
- Floor - R27 Insulation
- 6'-5" Ceiling Height
- Hydraulic Operating System
- Double Squeegee Seals w/One-Piece Weather-proof Floor Pan.
- 12V Lights w/Wall Switches
- Cabinets Above Sofa
- Hydraulic Manual Override System
- Decorative Glass Inserts in Overheads
- 110V Ceiling Fan with Light Kit
- Decorative Border Tape & S/O Fascias
- Day/Night Shades Throughout
- 8 Cu. Ft. Dometic Refrigerator
- Microwave Oven
- Smoke Detectors
- Fire Extinguisher by Entry Door
- LP Gas & CO2 Detectors inside Unit
- Exterior Security Flood Lights
- Break Away Switch
- Deadbolt Lock on Entrance Door
- 120V GFI Protected Outlets
- Fire Escape Windows
- All Safety Glass Windows
- 12V Hitch Light
- Room for Large Trash Can (most models)
- Residential Sized Cabinets
- Residential Size Stainless Steel Sink
- Deep Residential Size Drawers
- Pull-Out Sprayer Faucet
- Large, Deep Pantry w/Adjustable Shelves
- Countertop Extension (most models)
- 6’-4" Bath/Bed Ceiling Height Throughout
- Large Medicine Cabinet
- Vanity Light Bar and Wall Mirrors
- One-Piece Fiberglass Shower w/Seat
- Glass Shower Surround
- Adjustable Shower Head/Soap Dish
- Clear Skylight over Shower
- Power Roof Ventilation
- Dual 12V Lights with Soft Lighting Lenses
- Porcelain Commode w/Foot Flush
- Storage Shelf
- Heat Duct AND Air Conditioning Duct
- 110V Outlet for Night Light
- Electric Rear Jacks
- Electric Awning
- Aluminum Rims
- Molded Hitch Cover
- Booth Dinette IPO Free Standing
- 27" LCD TV
- High Back Desk Chair (3300, 3500 only)
- 2 Recliners IPO J-Sofa (2950RK only)
- Solid Surface Countertops
- Electric Fireplace (N/A on 3490BHS, 3490RB, 2950RK)
- Wired & Framed for Second A/C
- Dual Pane Windows
