- MSRP: $109,831
-
Sleeps 6
-
3 Slides
-
BunkhouseOutdoor Kitchen
-
38ft Long
-
11,569 lbs
-
Coastal Carolina

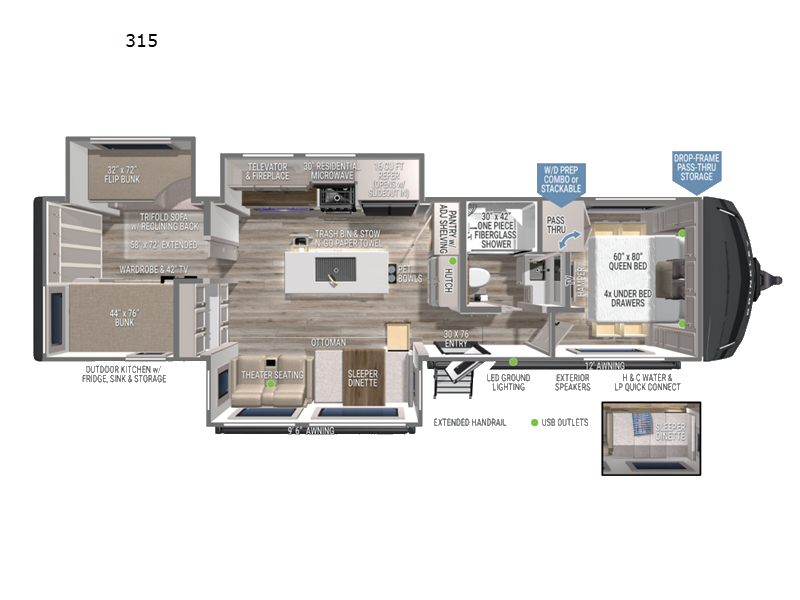

315 Floorplan
Specifications
| Sleeps | 6 | Slides | 3 |
| Length | 38 ft 5 in | Ext Width | 8 ft |
| Ext Height | 11 ft 9 in | Int Height | 7 ft |
| Interior Color | Coastal Carolina | Hitch Weight | 1105 lbs |
| GVWR | 14495 lbs | Dry Weight | 11569 lbs |
| Fresh Water Capacity | 61 gals | Grey Water Capacity | 105 gals |
| Black Water Capacity | 45 gals | Tire Size | 16" |
| Furnace BTU | 35000 btu | Number Of Bunks | 2 |
| Available Beds | Queen | Refrigerator Type | 12V |
| Refrigerator Size | 16 cu ft | Cooktop Burners | 3 |
| Shower Size | 30" x 42" | Number of Awnings | 2 |
| Axle Weight | 7000 lbs | LP Tank Capacity | 60 lbs |
| Water Heater Type | Tankless On Demand | AC BTU | 44000 btu |
| TV Info | LR 42" Televator, Bunkroom 42" Smart TV BR 32" TV | Awning Info | 9' 6" and 12' |
| Axle Count | 2 | Washer/Dryer Available | Yes |
| Number of LP Tanks | 2 | Shower Type | Shower w/Seat |
| Solar Wattage | 370 watts | VIN | 7t0ta3823tf010328 |
Description
Brinkley Model Z Air travel trailer 315 highlights:
- Triple Slides
- Kitchen Island
- Rear Private Bunkhouse
- Front Private Bedroom
- Exterior Speakers
The whole gang will love camping in this spacious travel trailer for six to seven! Your guests or little ones will have the rear bunkhouse all to themselves, which includes a tri-fold sofa with a reclining back, a flip-up bunk, plus a second bunk bed across the room for even more sleeping space. There is even a bunkroom 42" Smart TV with a wardrobe for entertainment and storage! The front private bedroom includes a walk-around queen bed with four under-bed drawers for clothes, extra blankets and more. Head to the combined kitchen and living room to prep dinner on the kitchen island, relax on the theater seating, and dine at the sleeper dinette. There is also a pantry with adjustable shelves here, along with a hutch, 16 cu. ft. refrigerator that opens with the slide out, plus a televator and fireplace to make your space feel more like home! Outside, you'll find two power awnings, LED ground lighting, drop-frame pass-thru storage, and an outdoor kitchen with a refrigerator, sink, and storage!
With any Model Z Air travel trailer by Brinkley, you will enjoy premium features at every turn. The industry-first low maintenance roof is sure to be appreciated, plus there are industry-first brass plumbing connections for excellent resistance to corrosion. The drop-frame chassis with a massive pass-through bay will allow you to bring along camp gear galore, plus there are motion lighting and power outlets for added convenience! You'll also find two hot/cold showers outdoors, along with a 370-watt solar panel and a premium utility center with a retractable 65' water hose to wash off mud from the lake. The interior is just as accommodating with its solid surface countertops, Brinkley CraftSense wood trim construction, integrated blackout window shades, and the list of luxury features goes on!
Features
Standard Features (2026)
Chassis & Suspension
- Drop Frame Chassis (Brinkley Spec & Certified)
- Road Defense Triple Powder Coated Chassis
- Premium Hankook Vantra 235/80 Load Range E 10-Ply Tires (285, 295)
- Premium Hankook Vantra 235/80 Load Range G 14-Ply Tires (297, 310, 315)
- 16" Custom Aluminum Luxury Wheels
- Road Debris Galvanized Wheel Well Shields
- Anti-Lock Braking System (ABS) w/ Anti-Sway & Dynamic Brake Boost
- Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display
- Automatic One Touch 5-Point Leveling & Stabilization System w/ Hitch Height Memory
- Heavy Duty 6,000 lbs. Axles w/ 6,000 lbs. Leaf Springs (285, 295)
- Heavy Duty 7,000 lbs. Axles w/ 8,000 lbs. Leaf Springs (297, 310, 315)
- High-Performance Road Armor™ Suspension Equalizer System
- Reinforced Axle Hangers
- Demco EZ Latch Trailer Coupler
- Upgraded 6' Coiled Breakaway Safety Cable
- LED Underbody Ground Lighting
- 2" Rear Receiver Hitch w/ 4-Way Connector (300 lbs. Tongue Weight 3,000 lbs. GTW)
Exterior & Storage
- Square Euro Frameless Windows w/ 6" Openings (Industry 1st)
- Dual Pane Square Euro Frameless Windows w/ 6" Openings (optional)
- Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
- Automotive Front Cap, Lights, & Lenses
- Exterior Speakers w/ Bluetooth & Campside Controls
- Electric Awning(s) w/ Dotless COB Neon LED Lighting
- Off-Campside LED Flood Light
- Backup Camera & Wireless Monitor w/ Observation/Security Mode
- Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster
- Heated & Insulated Pass-Through Storage Compartment w/ Motion Lighting & Power Outlets
- Front Pass-Through Storage Compartment:
- Full-Width LED Strip Lighting
- 4x Power Outlets
- Antenna/Coax Hookup
- Forced-Air Heated & Insulated
- Off-Campside 'Saddle Bag' Drop-Down Storage Area
- Rear Storage Compartment (297, 310, 315)
- 2X Power Outlets (297, 310, 315)
- Motion Actived Lighting (297, 310, 315)
- Forced-Air Heated & Insulated (297, 310, 315)
- Rear to Campside Pass-Through Drop-Frame Storage Compartment (295)
- Flip-Down Cargo Divider (295)
- 4x Power Outlets (295)
- Motion Activated Lighting (295)
- Cargo Pocket w/Sliding Access Door (295)
- Adjustable Cargo Bay Tie-Down System w/4 L-Tracks (295)
- Forced-Air Heated & Insulated (295)
- Tough-Ply Floor & Walls in Storage Compartments
- Pet & Property Security Campside Tie-Down
- Slam Latch Baggage Doors
- Heavy-Duty Ladder w/ Secure-Transition & Weep Holes
- Custom LP & Gear Box w/ Locking Tool Storage & Battery Tray (2x Group 27)
- Rock Guard Front Protective Shields
- Deluxe Entrance Package:
- Oversized 30?x76? Entry Door
- Keyless Entry
- Integrated Blackout Window Shade
- Child/Pet Screen Protector
- Screen Assist Push Bar Opener
- Screen Shot Automatic Screen Door Closer
- Extra-Wide & Deep Solid Entry Steps
- 54" Telescoping Entry Handrail (Extends to Bottom Step)
- Campside Outdoor Kitchen Amenities (315)
- 12V Refrigerator
- Heavy-Duty, Large Capacity Storage Drawers
- Work Surface Countertop
Solar, Electrical & HVAC
- 370-Watt Solar Panel (740 Watt Ready) SO Hot Feature
- 50 Amp MPPT Solar Controller (Inverter Prep & Lithium Ready)
- 18k BTU Rear Furrion Chill Cube Air Conditioner (Main)
- 18k BTU Front Furrion Chill Cube Air Conditioner (Bed & Bath)
- 8K BTU Air Conditioner (2nd Bedroom/Bunkhouse) (315)
- Brinkley Smart-Command™ Center w/ App Control
- Thermaflex® No Kink No Tear Heat Ducts
- Travel & Storage Mode Battery Disconnects
- Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
- Wire Conduit for Aftermarket Upgrades (Roof> Interior> Basement)
- 35k BTU High-Capacity Furnace
- Detachable 50-amp Power Cord w/ Angled Connector
Plumbing & LP
- Brass Plumbing Fittings (Industry First)
- Water Shutoff Valve on ALL Fixtures
- Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports
- Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated)
- Extended Waste Hose Storage Tube
- Clear "No Surprises" Sewer Cap w/ Lanyard
- Brinkley On-Command™ Docking & Utility Center
- 65' Retractable City Water Hose
- 2x 90-Degree Brass Elbows for Docking Station Water Hoses
- EZ Winterization Valve in Utility Center
- Washer/Dryer Prep (Stackable or Combo) (285, 297, 315)
- Washer/Dryer Prep (Separate Unis or Combo) (310)
- 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)
- Tankless On-Demand Water Heater (144 Gallons Per Hour)
- 2x 30 lbs. LP/Propane Tanks
- LP-IQ Propane Gauge
- Exterior LP Quick Connect
Interior & Living Spaces
- Brinkley CraftSense™ Wood Trim Construction
- DUAL Flush Floor Galley & Livingroom Slides (Segment First)
- 72.5" Slide-Out Height
- Window Integrated Day Screens & Blackout Shades w/ Reflective Insulation + Full Bug Screens
- Dimmable Living Room Lights
- 42" Smart TV & Televator (Powered TV Elevator) (N/A 295)
- 50" Smart TV w/Articulating Mount (295)
- Premium Audio System w/ Bluetooth w/ Physical Controls
- Entertainment Shelf (Behind TV)
- Fireplace w/ 5,000 BTU Electric Heat
- Wall Hugger Theater Seating w/ Heat & Wireless Charging (2x Recliners) (N/A 295)
- Wall Hugger Theater Seating & Sofa w/Heat & Wireless (295)
- 72" Trifold sofa w/Scotchgard Protection (297, 310, 315)
- Residential End Tables w/Storage & Pop-Up Outlets & USB Ports (297, 310, 315)
- Desk w/ Outlets, Pencil Drawer, & Overhead Storage Cabinets (285)
- 14 Outlets - 4 w/USB & USB-C (295)
- 13 Outlets - 3 w/ USB & USB-C (285)
- 23 Outlets - 5 w/USB & USB-C (297, 310, 315)
- Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
- Soft-Close Cabinet Doors & Drawers
- Pet-Friendly Package:
- Ductless Floors in Main Living Areas
- Child/Pet Defender Screen Protector
- 100% Carpet Free
- Exterior Pet & Property Security Tie-Down
- Magnetic Pet Feeder w/ Removable Bowls (Sticks to Island Base)
Kitchen & Dining
- Premium Residential Drawers w/ Dovetail Joints
- Residential Solid Surface Countertops
- One-Piece Steel Island Base (Super Stable)
- Flip-Down Island Bar w/Stoos (295)
- Brinkley Z Dinesk Sliding Desk/Dining Table w/Automatic Extending Leaves & Storage Drawer (4 Position) (297, 310, 315)
- Space-Saving Bench Ottoman/Coffee Table & Workstation w/Storage (285, 297, 310, 315)
- Sleeper Dinette w/ Storage Drawer & Indirect Mood Lighting (285, 315)
- Pull-Out Trash Bin w/ Utility Storage (N/A 295)
- Dual Pull-Out Trash Bins (295)
- Stow ‘n Go Paper Towel Caddy
- Custom Spice Rack Drawer Insert (Removable) (N/A 285, 295)
- Premium Residential Soft Close Cabinet Doors & Drawers
- Magnetic Cabinet & Drawer Catches
- Large Pantry w/ Adjustable Shelves & Appliance Outlet
- Second Pantry (Next to Fridge) (285)
- 16 Cubic Feet Energy Efficient 12-Volt Refrigerator
- Residential 30" Microwave
- Farmhouse Black Stainless Steel Sink w/ Tuff Coat & Roller Cover
- Soffit & Island Base w/ Indirect Mood Light
- Hutch w/Solid Surface Countertop (285, 295)
- Maxxair Fan w/ Rain Sensor
Bathroom
- One-piece 42"x30" Molded Fiberglass Shower w/ Seat (Low-Step/Max Height)
- Marine Grade Dotless COB Neon LED Shower Lighting
- Residential Shower System w/ Head, Body, & Handheld Sprayers
- Overhead Shower Cove
- Glass Sliding Shower Door
- Space Saver Bathroom Passage Door(s)
- Lighted Bathroom Mirror
- Residential Solid Surface Countertop
- Dual Access Bathroom to Bedroom Pass Through Storage Cabinet
- Overhead Shelf
- 3 Matching Bath Hooks
- Porcelain Toilet
- Toilet Paper Holder w/ Magnetic Travel Keeper
- Maxxair Fan w/ Rain Sensor
Bedroom
- Dimmable Bedroom Lights
- Queen Bed w/ Residential 7" Memory Foam Mattress (60" x80") (N/A 310)
- Queen Bed w/Residential 7" Memory Foam Mattress (60" x 80) & Nightstands (310)
- King Bed w/Residential 7" Memory Foam Mattress (70" x 80") (Optional; 310)
- Dual Built-in Bedside Storage Cubbies w/ Outlets & USB & USB-C Charing Ports (CPAP Ready) (N/A 310)
- Dual Bedside Overhead Shelves (CPAP Extensions Available Through Parts Dept.) (310)
- Matching Comforter & Pillow Package
- Dual Motion Activated LED Bed Lights
- Padded Headboard w/ Overhead Shelf
- Finished Under-Bed Storage Compartment (N/A 285)
- Under-Bed Storage Drawers (285, 297, 315)
- 2x Felt-lined Under-Bed Storage Trays (285, 297, 315)
- Under-Bed Storage Space w/ Lockable In-Floor Steel Safe (285, 297, 315)
- Dual Reading Sconce Lights
- Dual Wardrobe Closets w/Drawers (N/A 310)
- Triple Wardrobe Closets w/Drawers (310)
- Residential Style Dresser (310)
- Hidden Sliding Dresser Top Storage Compartment (310)
- Cordless Vacuum Prep w/ Closet/Wardrobe Outlet
- 32" Smart TV
- Fireplace w/ 5,000 BTU Electric Heat (Bedroom) ((285, 297, 315)
- 3x Folding Wall Hooks (295, 310)
Second Bedroom (Rear Bunkhouse)
- Residential Interior Door (Private Bedroom) (295, 315)
- 42" Smart TV (315)
- 68? Trifold Sofa w/ Reclining Back & Scotchgard Protection w/ USB Charging Ports (58"x72" Sleeper) (315)
- Overhead Flip Bunk (32”x72”) (315)
- Rear Trop Bunk Bed (44”x76”) (315)
- Wardrobe w/ 6x Drawers, Closest, & Storage Cubbies (315)
- Wall Hooks & Overhead Shelf (315)
- Dimmable Lights (315)
- Stacked Rear Bunk Beds w/ Double Mattresses (54”x74”) (295)
- Floor to Ceiling Storage Cabinet w/ Drawers (295)
- TV Prep (Power, Mounting Backer, & Antenna/Coax) (295)
- Outlets & USB Charging Station (Upper & Lower Bunk) (295)
Construction
- Designed by Campers & Developed with Customer Feedback
- Designed For Full-Time RVing
- Brinkley Automotive Exterior Seals Package
- Low-Maintenance Roof
- Developed by Campers with Customer Feedback
- Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
- Bedroom Slim Rack Slide System (310)
- Automotive-Style Riveted Wheel Skirts & Panels
- Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel
- Reinforced & Walkable Slide-Out Roofs
- Thermaflex® No Kink No Tear Heat Ducts
- Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
- Water Shutoff Valve on ALL Fixtures
- Brass Plumbing Fittings (Segment First)
- Industry Best Insulation Package:
- R40 Roof, R9 Walls, R40 Floor Insulation
- Double Insulated Roof, Front Cap, & Main Floor
- Heated & Enclosed Underbelly (Circulated)
- Insulated Slide-Out Floors
- Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
- Industry Leading 350+ Point Inspection & Testing Process
- Off-Road Simulation Tested (Industries Exclusive)
- Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
Pleasureland RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @800-862-8603 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
