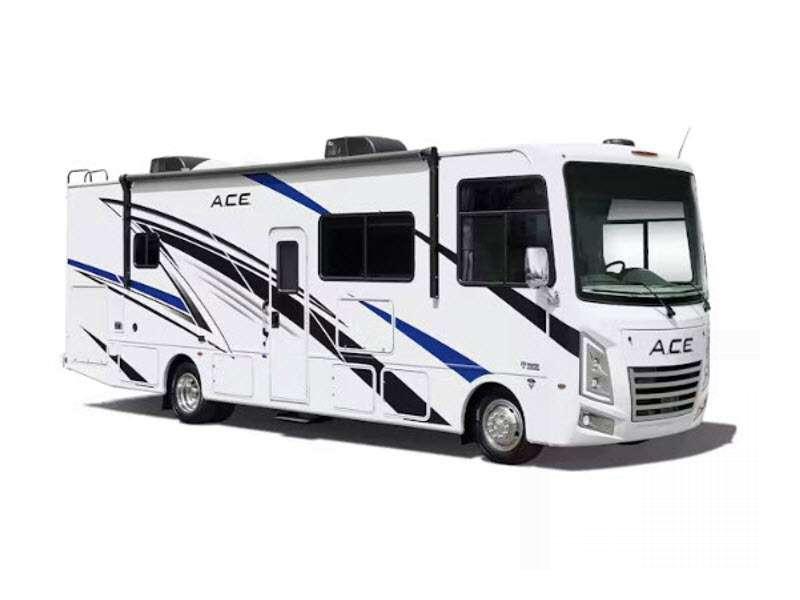

Thor Motor Coach ACE Motor Home Class A

Previous
Next
1 of 24
The A.C.E. is the evolution of what customers want...the perfect combination of the class A & class C motorhome.  From the outside graphics to the details inside you'll be pleasantly surprised with the Thor Motor Coach creation. Built on a Ford F-53 chassis and powered by a 6.8L Triton V10 gas engine to bring you a smooth ride with plenty of at home features and creature comforts to make any trip feel as though you never left home.

Owners will love the homey fabric collection, the interior decor choices, and the HD-MAX exterior paint colors. Pet lovers and their pets will appreciate the pull-out Kibble Station with a FDA approved pet bowl liner, the Bird's Eye Window (pet window) and the Pet-Link multi-purpose tie-down. This is the motorhome with a story....why not let a Thor Motor Coach A.C.E. class A gas coach be part of your next adventure!
  • Specifications

    Sleeps 6
    Slides 2
    Length 28 ft 9 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 16000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 73 gals
    Black Water Capacity 40 gals
    Tire Size 19.5"
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 178 in
    Number Of Bunks 1
    Available Beds King
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36" in
    Number of Awnings 1
    LP Tank Capacity 88 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 56 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 19' Power with Integrated LED Lighting
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 29.3

    ACE 29.3 Floorplan Image

    Thor Motor Coach ACE 29.3 class A gas motorhome highlights: Full Wall Slide ... more about ACE 29.3

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 29 ft 9 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 47 gals
    Black Water Capacity 26 gals
    Tire Size 19.5"
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36" in
    Number of Awnings 1
    LP Tank Capacity 88 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 48 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 18' Power with Integrated LED Lighting
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 29.4

    ACE 29.4 Floorplan Image

    This A.C.E. 29.4 class A gas motorhome by Thor Motor Coach features double slide ... more about ACE 29.4

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 30 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color Arctic Frost II, Island Nights, Mesa Mineral II
    Exterior Color Brandywine, Vineyeard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 44 gals
    Black Water Capacity 44 gals
    Tire Size 19.5"
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 1
    Available Beds King
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36" in
    Number of Awnings 1
    LP Tank Capacity 88 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 54 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 18' Power
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 30.2

    ACE 30.2 Floorplan Image

    Thor Motor Coach ACE 30.2 class A gas motorhome highlights: Full Wall Slide Bunk ... more about ACE 30.2

    Specifications

    Sleeps 8
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 28 gals
    Tire Size 19.5"
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 32" x 32" in
    Number of Awnings 1
    LP Tank Capacity 88 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 107 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Bunk Beds (2) 15.5" LED TV's, Ext. 32" LED TV
    Awning Info 19' Power with Integrated LED Lighting
    Gross Combined Weight 23000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 30.3

    ACE 30.3 Floorplan Image

    Thor Motor Coach ACE 27.2 class A gas motorhome highlights: Split Bath Two ... more about ACE 30.3

    Specifications

    Sleeps 6
    Slides 2
    Length 31 ft
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 19.5"
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 88 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 72 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 19' Power with Integrated LED Lighting
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 30.4

    ACE 30.4 Floorplan Image

    Thor Motor Coach ACE 30.4 class A gas motorhome highlights: Large Wall Slide ... more about ACE 30.4

    Specifications

    Sleeps 6
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 47 gals
    Black Water Capacity 40 gals
    Tire Size 19.5"
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 208 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 32" x 32" in
    Number of Awnings 1
    LP Tank Capacity 88 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 130 cu. ft.
    TV Info LR 32" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 16' Power with Integrated LED Lighting
    Gross Combined Weight 23000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 6
    Slides 2
    Length 33 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 20500 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 67 gals
    Tire Size 19.5"
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 208 in
    Number Of Bunks 1
    Available Beds King
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36" in
    Number of Awnings 1
    LP Tank Capacity 88 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 83 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 14' Power with Integrated LED Lighting
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

ACE Features:

Standard Features (2019)



Construction & Exterior

  • Ford® F-53 Chassis - 6.8L Triton® V10 Engine, 320HP, 460 lb.-ft. Torque - TorqShift® 6-Speed Automatic Transmission with Overdrive
  • One-Piece Fiberglass Front Cap
  • One-Piece Windshield
  • Welded Tubular Steel Floor
  • Welded Tubular Aluminum Roof & Sidewall Cage Construction
  • Vacu-Bond Laminated Roof, Walls & Floor with Block Foam Insulation
  • Premium One-Piece TPO Roof

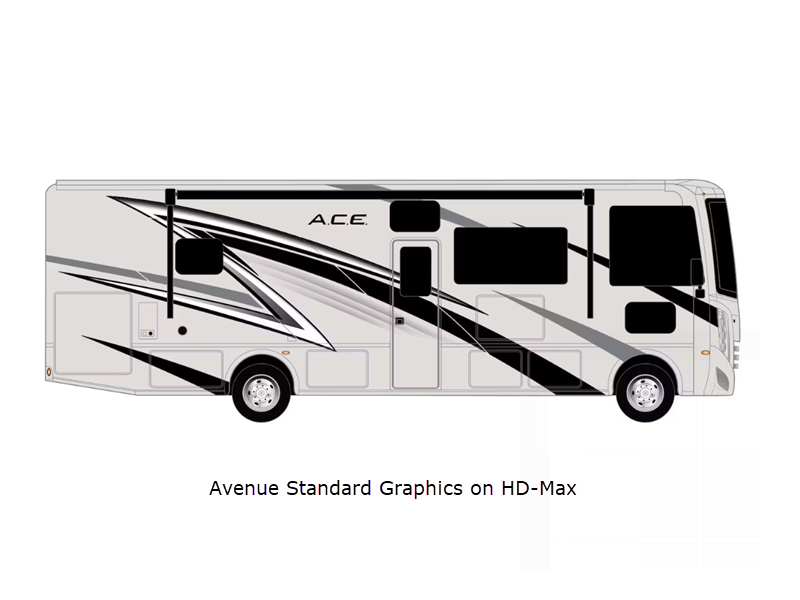

  • HD-MAX® Exterior with Graphics Package
  • Automatic Leveling Jacks with Touchpad Controls
  • Side-Hinged Flush Mount Radius Compartment Doors
  • Rotocast Storage Compartments
  • MEGA-Storage™ Compartment (30.4)
  • Pet-Link™ Multi-Purpose Tie-Down
  • Power Patio Awning with Integrated LED Lighting
  • 3TRAX® Wall Slide System (29.3, 30.2, 30.4 & 32.1)
  • Slideout Room Topper Awning(s)
  • Frameless Windows
  • Motorhome Mudroom™ Compartment
  • Electric Entry Step
  • Roof Ladder
  • 8,000-lb. Trailer Hitch with 7-pin Round Connector

Automotive & Cockpit

  • 10” Touchscreen AM/FM Dash Radio with Bluetooth®
  • Back-Up Monitor
  • Heated/Remote Exterior Mirrors with Integrated Side View Cameras
  • Reclining/Swivel Leatherette Captain’s Chairs with Stow-Away Coffee Table
  • Emergency Engine Start Switch
  • Windshield Privacy Shade
  • Conversation Mirrors
  • Cruise Control
  • Tilt Steering Wheel
  • Map Lights
  • Bird’s Eye™ Window
  • Valve Stem Extenders on Rear Wheels
  • 19.5” Tires with Stainless Steel Wheel Liners
  • Dash Workstation with 110-volt& 12-volt Outlets

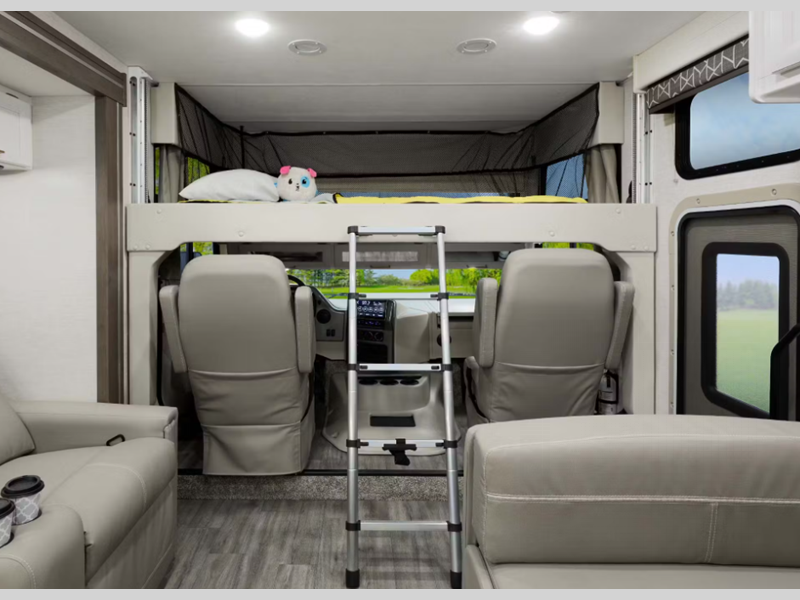

  • Power Drop Down Hide-Away Overhead Bunk with Bunk Ladder

Interior

  • Rubber Tread Entry Steps with Lighted Step Well & Utility Storage
  • Residential Vinyl Flooring
  • 84” Interior Ceiling Height
  • LED Lighting
  • Ceiling Ducted Air Conditioning System
  • Flat Panel Cabinet Doors with Nickel Finish Hardware
  • Full Extension Ball-Bearing Metal Drawer Guides
  • Leatherette Sofa Bed
  • Leatherette Dream Dinette® with Cup Holders
  • Window Privacy Shades
  • 12-volt Attic Fan with Cover in Living Area

Interior Option

  • Single Child Safety Tether in Dream Dinette®

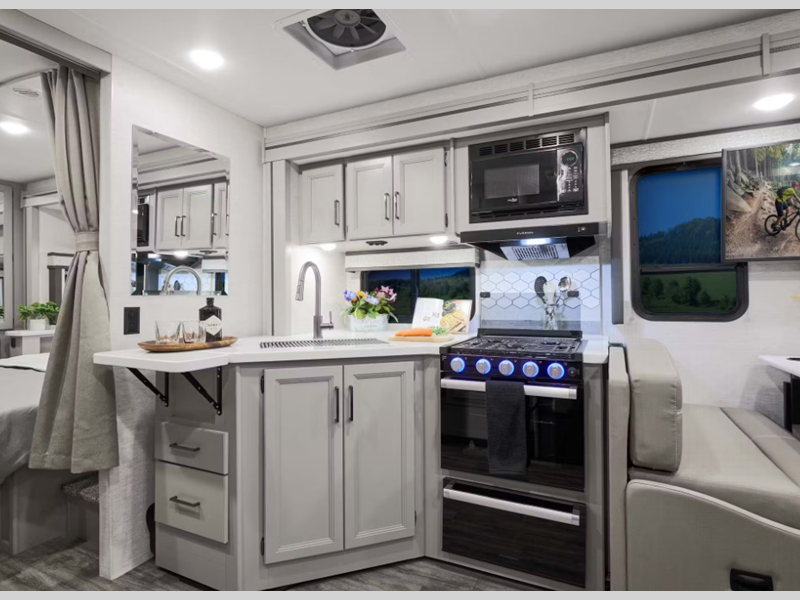

Kitchen

  • Double Door Refrigerator
  • 3-Burner Gas Cooktop/Oven with Bi-Fold Glass Cover
  • Microwave Oven
  • Laminate Countertops
  • Glass Tile Backsplash
  • Oversized Stainless Steel Single Bowl Sink & Single Handle Faucet w/Pull-Down Sprayer
  • Pantry (27.2, 29.3, 30.2, 30.4 & 32.1)
  • Coat/Broom Closet with Hanging Hooks (27.2 & 30.2)
  • Waste & Recycling Containers

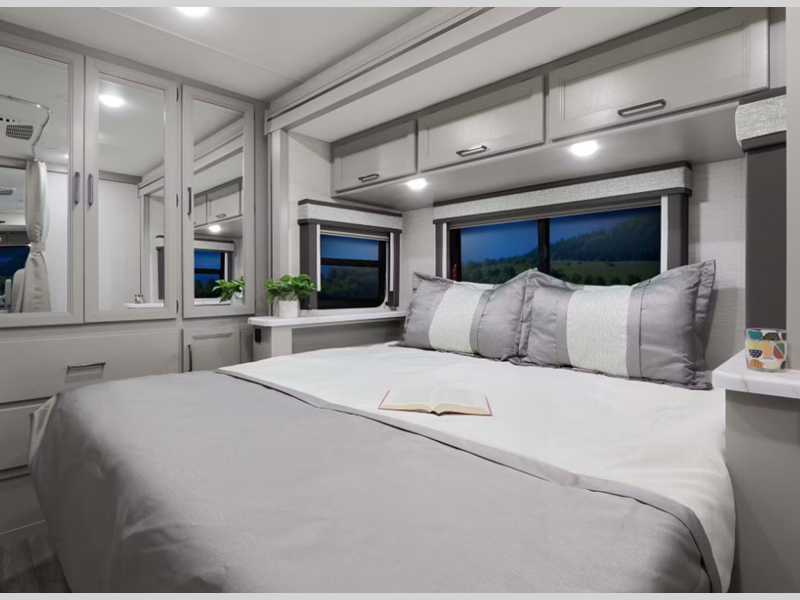

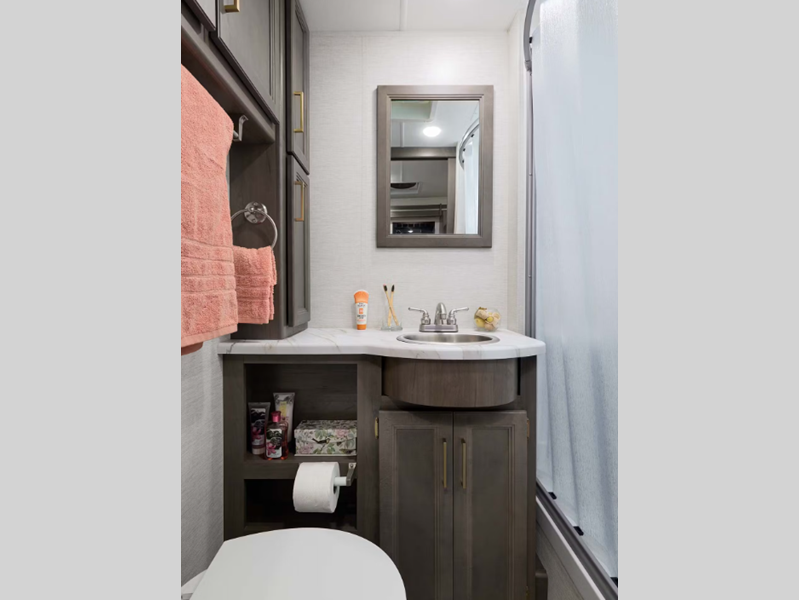

Bedroom & Bathroom

  • Denver Mattress® King Size Bed (27.2 & 32.1)
  • Denver Mattress® Queen Size Bed (29.3, 30.2, 30.3 & 30.4)
  • Dedicated CPAP Outlet and Storage Location
  • Designer Headboard, Bedspread & Pillow Shams
  • Bunk Beds w/Bunk Ladder (30.2)
  • 12-volt Attic Fan with Cover in Bedroom
  • Pull-Out Kibble Station™ with FDA Approved Pet Bowl Liner
  • Foot Flush Porcelain Toilet
  • Shower with Curved Rod and Anti-Microbial Curtain (27.2, 29.3, 30.3 & 32.1)
  • Shower with Glass Door (30.2 & 30.4)

Entertainment

  • 40” TV in Living Area (27.2, 29.3, 30.2, 30.4 & 32.1)
  • Retractable 40” TV in Living Area (30.3)
  • Blu-Ray Player in Living Area
  • 32” TV in Bedroom
  • Two (2) 15.5” TVs & DVD Player in Bunk Bed Area (30.2)
  • Power Charging Center for Electronics
  • Cable TV Ready
  • Digital TV Antenna
  • Exterior 32” TV on Manual Swivel with Sound Bar & Radio
  • Exterior Kitchen with Refrigerator, Sink & 1000-watt Inverter (29.3 & 30.3)
  • Exterior LP Connection

Electrical & Plumbing

  • Onan® RV QG 4000 Gas Generator
  • 30-amp Detachable Shoreline Power Cord
  • 15,000 BTU Roof Air Conditioner
  • Solar Charge Controller - Solar Panel Ready
  • Second Auxiliary House Battery
  • Battery Disconnect Switch
  • 6-gallon DSI Gas/Electric Water Heater (27.2, 29.3, 30.2, 30.3 & 30.4)
  • 10-gallon DSI Gas/Electric Water Heater (32.1)
  • 360° Siphon RV Holding Tank Vent Cap
  • 1” Fresh Water Tank Drain
  • Black Tank Flush System
  • Water Heater Bypass System
  • Enclosed & Heated Holding Tanks (27.2 & 30.3)
  • Enclosed Holding Tanks with Heat Pads (29.3, 30.2, 30.4 & 32.1)
  • Outside Shower
  • Systems Control

Electrical & Plumbing Option

  • 50-amp Detachable Shoreline Power Cord, Dual 13,500 BTU Roof Air Conditioners, and Onan® RV QG 5500 Gas Generator (29.3, 30.2, 30.3, 30.4 & 32.1)



See us for a complete list of features and available options!



All standard features and specifications are subject to change.

Manu-Facts:

Thor Motor Coach is the #1 Motorhome manufacturer in North America*  The shear volume of products allows Thor Motor Coach to offer you higher quality, lower prices, and extensive features.  When it comes to giving you more for your money, no other brand can compare.

Thor Motor Coach was formed when Damon Motor Coach and Four Winds International strategically merged in late 2010.  For over 29 years Damon RV and Four Winds RV have been building many of the most recognized brands of motorized Recreational Vehicles in the world.

Thor continually strives to be a leader in innovation and have research and development departments working with Suppliers and Sales and Service departments to bring fresh products that ensure you are getting exactly what you are looking for.

Thor Motor Coach has put in place some programs to help ensure customer happiness which includes: 24/7 Factory Direct Support (no one should expect that you only drive from 9 to 5), Gold Star Inspection (every coach driven off the Thor Motor Coach lot needs to pass a detailed 200+ point inspection and road test, no spot checking here!), Rapid Response and Concierge Connection.  The Rapid Response is in place to keep you on the road enjoying your Motorhome for years.  Rapid Response is committed to stocking the necessary parts to get you back on the road quickly if ever you need something.  And, rather than assume that everyone is happy, Concierge Connection was started so that every customer that purchases a Thor Motor Coach receives a personal phone call immediately following their purchase and again after 90 days.

With Thor Motor Coach you can be assured of finding just the right coach to fit your family, and your budget!
